Description

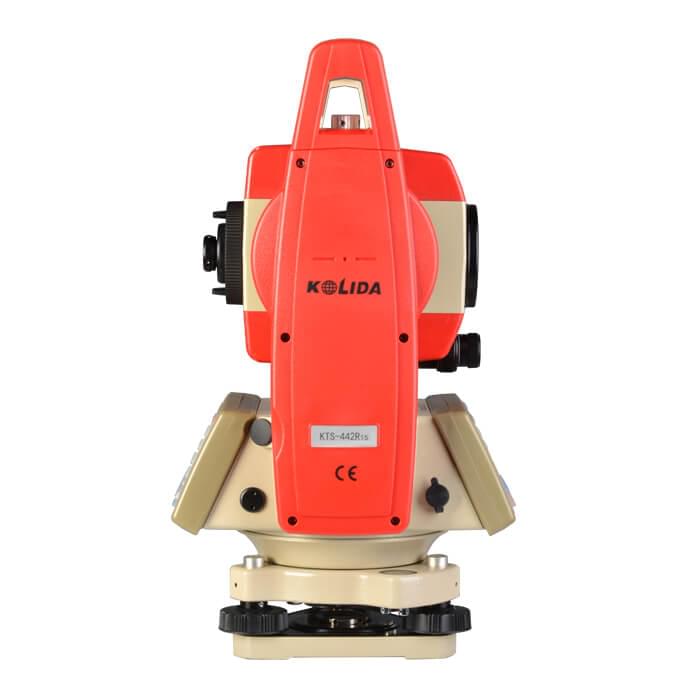

Kolida KTS-442R10 Total Station

Kolida KTS-442R10 New series

Kolida KTS-442R6 Total Station infrared laser total station with advanced absolute encoding angle measurement technology, greatly improving the accuracy and stability of the angle measurement. Boot without initialization, in the measurement if the power off, after the restart still retain the original information, greatly facilitate the measurement workers. At the same time, KTS442R10 with a circuit board, absolutely international level, completely solve the integration problems with crosstalk, production, maintenance efficiency improved several times. In addition, tight rubber ring waterproof, so that the waterproof and dust level to reach IP65 level.

Large memory

Kolida KTS442R10 Internal memory : 2M storage .able to store 24000 point. External: 2G SD card. (for the model with SD card function)No worry for short of memory space.

Convenient data management

1.SD card storage and Mini USB port

USB Flash and SC card memory

Enables users to manage massive working data and resources. Never hurry to take your machine back to the office,Just keep your flashcard or SD card in the pocket !

2. Convenient data management

Easily operation on data adding, deleting, modifying, transferring. The total station can be recognized as a flash memory disk by computer.

3. Long-distance measurement reflectorless 1000 meters.

With prism 5Km~10Km. Without prism, 1000m Is there any target that you can not put prism on? Now use reflectors-less laser!

Easily operation on data adding, deleting, modifying, transferring. The total station can be recognized as a flash memory disk by computer.

Long-distance measurement

With prism 5Km~10Km.Without prism 600m (optimal).Is there any target that you can not put prism on? Now use the reflectorless laser!

Abundant surveying programs

Various of surveying programs onboard: angle offset, angle repetition, dual-distance offset, 3-D coordinate measurement, remote Elevation, Missing line, staking-out, road design, area calculation, volume calculation and the reference line.

Absolute encoding disc

Never to manually rotate EDM to do angle initialization. Don’t fear about suddenly power-off. Absolute encoding, absolutely accurate.

Long-time operation

Two pcs of rechargeable batteries. Battery life can support 8 hours distance measurement or 24 hours continuously angle measurement.

For Kolida old model you go for this  KTS442R4

For more information about Kolida KTS442R10 2021 version you can visit Kolida Website
