Description

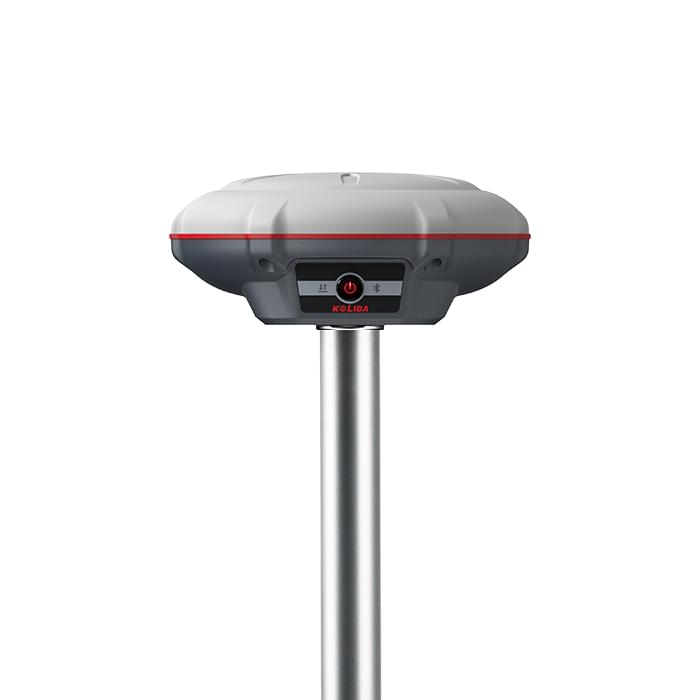

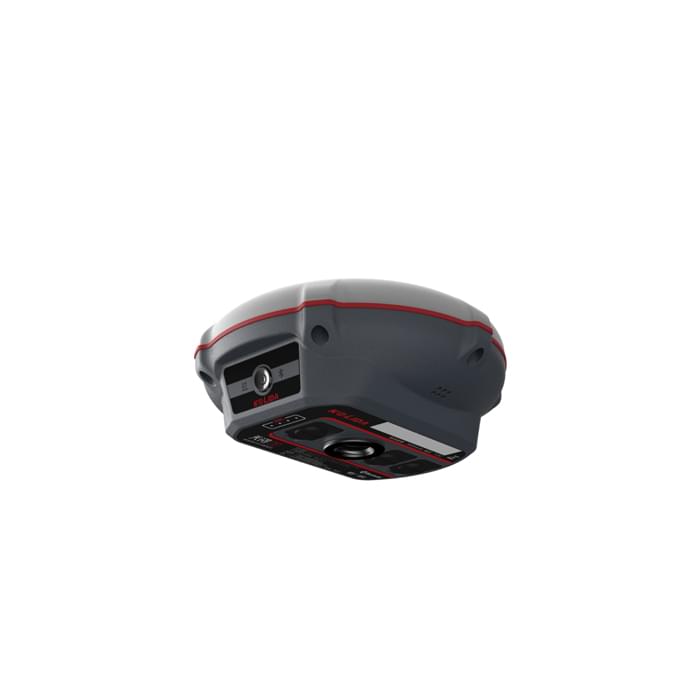

Kolida K3 IMU GNSS

The Best-in-Class GNSS Engine

The integrated advanced 1598-channel GNSS technology helps K3IMU to collect signal from GPS, Glonass, Beidou, Galileo, QZSS, in particular the latest BeiDou III. It greatly improved the data quality and satellite signal capturing speed of GNSS surveying.

“SOC” ,New System Structure

“SOC” means“System-on-Chip”, this new design integrates several individual hardware modules into one microchip. The receiver can be much lighter and smaller, system runs more stable and faster, bluetooth connection speed is faster. The“High-Low Frequency Integration”antenna can effectively restrain the interruptive signal.

Constantly Ungraded  Inertial Measurement

KOLIDA’s 3rd generation inertial sensor and algorithm are onboard now. The working speed and stability have been improved for 30% from the last version. When the GNSS fixed solution is lost and recovered again, Inertial sensor can remain the working status in a few seconds, no need to spend time to reactivate it…

0.69 kg,  Comfort Experience

K3 IMU is ultra light, the total weight is only 0.69 kg including battery, 40% even 50% lighter than a traditional GNSS receiver. The light-weight design reduces surveyor’s fatigue, increase their mobility, is especially helpful to work in challenging environment.

A Huge Leap In Working Hours

Thanks to the high-capacity battery and the intelligent power management plan,  K3 IMU can work up to 12 hours in RTK radio rover mode, up to 15 hours in static mode. The charging port is Type-C USB, users can choose KOLIDA quick charger or their own smartphone charger or power bank to recharge.

Easy Operation

K3 IMU can seamlessly connect to RTK GNSS networks via Android controller or smartphone with KOLIDA field data collection software, to work as a network rover, also can be worked as UHF radio rover by using its internal radio modem..
