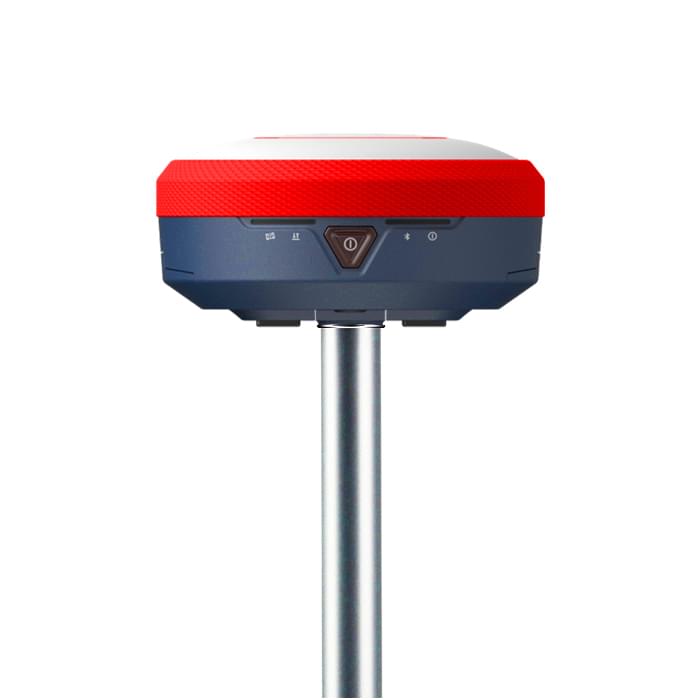

Kolida K58 plus GNSS

The Best-in-Class GNSS Engine

The integrated advanced 1598-channel GNSS technology helps K58plus to collect signal from GPS, Glonass, Beidou, Galileo, QZSS, in particular the latest BeiDou III. It greatly improved the data quality and satellite signal capturing speed of GNSS surveying.

New Radio, Farlink Tech

Farlink technology is developed to send large number of data and avoid data loss. This new protocol improves the signal-catching sensitivity from -110db to -117db, so K58 plus can transmit to 10 km away by only 1 watt power consumption.

Down to 4-10 cm Positioning by L-band

Thanks to the newly developed BDS correction service, K58plus is able to receive B2b signal via L-band, and perform a single point positioning precisely without base station. It is a great help to surveyors who work in particularly difficult areas. This service is available in 2022 in Asian-Pacific region.

Constantly Upgraded Inertial Measurement

KOLIDA’s 3rd generation inertial sensor and algorithm are onboard now. The working speed and stability have been improved for 30% from the last version. When the GNSS fixed solution is lost and recovered again, Inertial sensor can remain the working status in a few seconds, no need to spend time to reactivate it…

Tilt angle is up to 60 degrees, accuracy is down to 2cm.

Working Continuously Up to 20 Hours

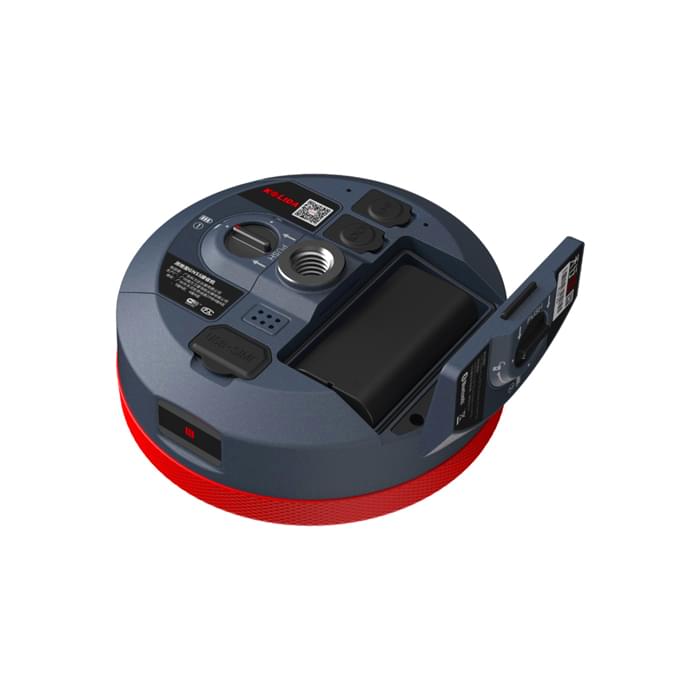

Thanks to the low consumption operation system design, K58plus can work up to 15-20 hours in RTK rover mode, up to 20 hours in static mode. Type-C USB port is onboard now. A reinforced battery compartment has been designed for K58plus, there are three times protection to prevent the battery “drop off”.

Extra Robustness, Long Service Life

The top cap, seal ring, bodywork, indicator light, painting… everything is new and quality. Our goal is to provide an exceptional feel and durability.
