Description

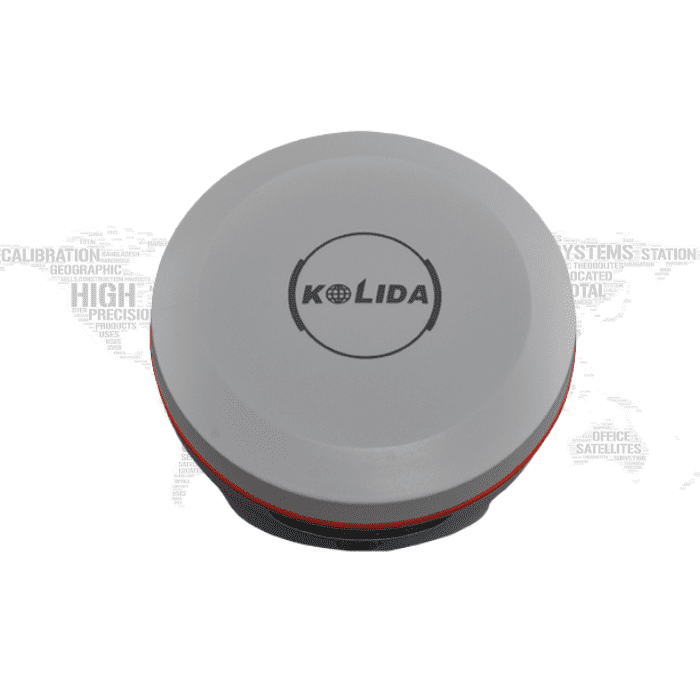

Kolida K6X RTK GNSS System

Kolida K6X is a Palm-sized RTK with Dual Camera Stakeout.Creating a New Vision to Your Success.

Pocket Sized RTK GNSS

Easy to carry and All-terrain surveying. We can put K6X in our pocket due to its 540g weight and 105mm*58mm size , making it portable for surveying and mapping project. With a 650g, extensible from 70-180cm Telescopic pole, K6X becomes more convenient in RTK, PPK Survey, suitable for different measurement environment.

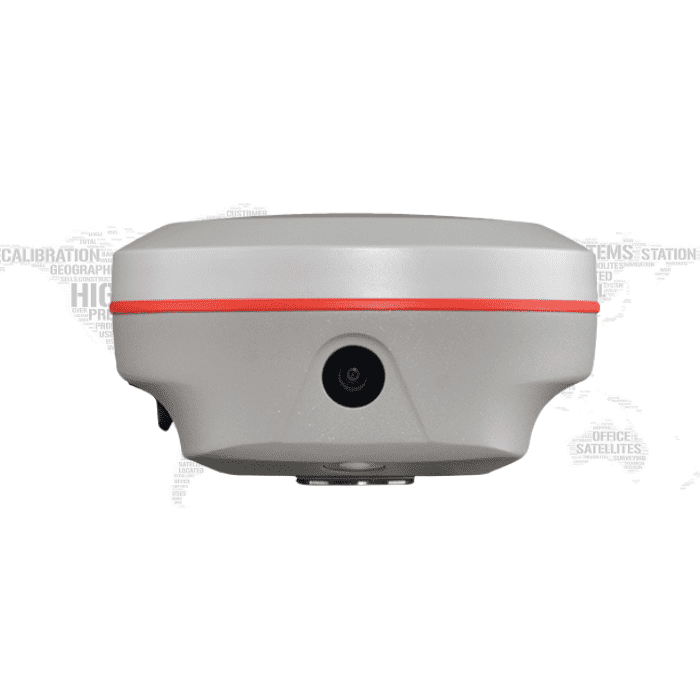

Pual Camera AR Stakeout

Intutive and Precise. K6X allows you to use both of front camera and bottom camera to stakeout points, lines, curves. The AR guideline on controller app will indicate you to go to the correct direction since you are tens of meters away from the target.

Visual Positioning (Optional), Eficient,Less-blind spot,Safe.

With the optional photogrammetry feature, users can use the K6X to perform non-contact measurement, processing a group of photos or a video in realtime, obtaining coordinates for hundreds of points within minutes.

The New 5th Gen.IMU,

Simpler and Easier-to-Use. In the past, surveyors wouldrotate the pole when changing the direction of travel or adjusting the attitude of the receiver, sometimes it disables IMU. Now the 5th generation IMU eliminates the loss of IMU Status in most scenarios to improve the availability and productivity of IMU. The calibrate-free feature save the time of manually initializing IMU each time.

Ksurvey App,

Increase Your Output. Ksurvey App features a series of practical and unique functionalities: Measure & Draw, CAD Drawing, Visual Positioning, CAD Stakeout, Area Division. Ksurvey also enable users to work it with Kolida total stations.
